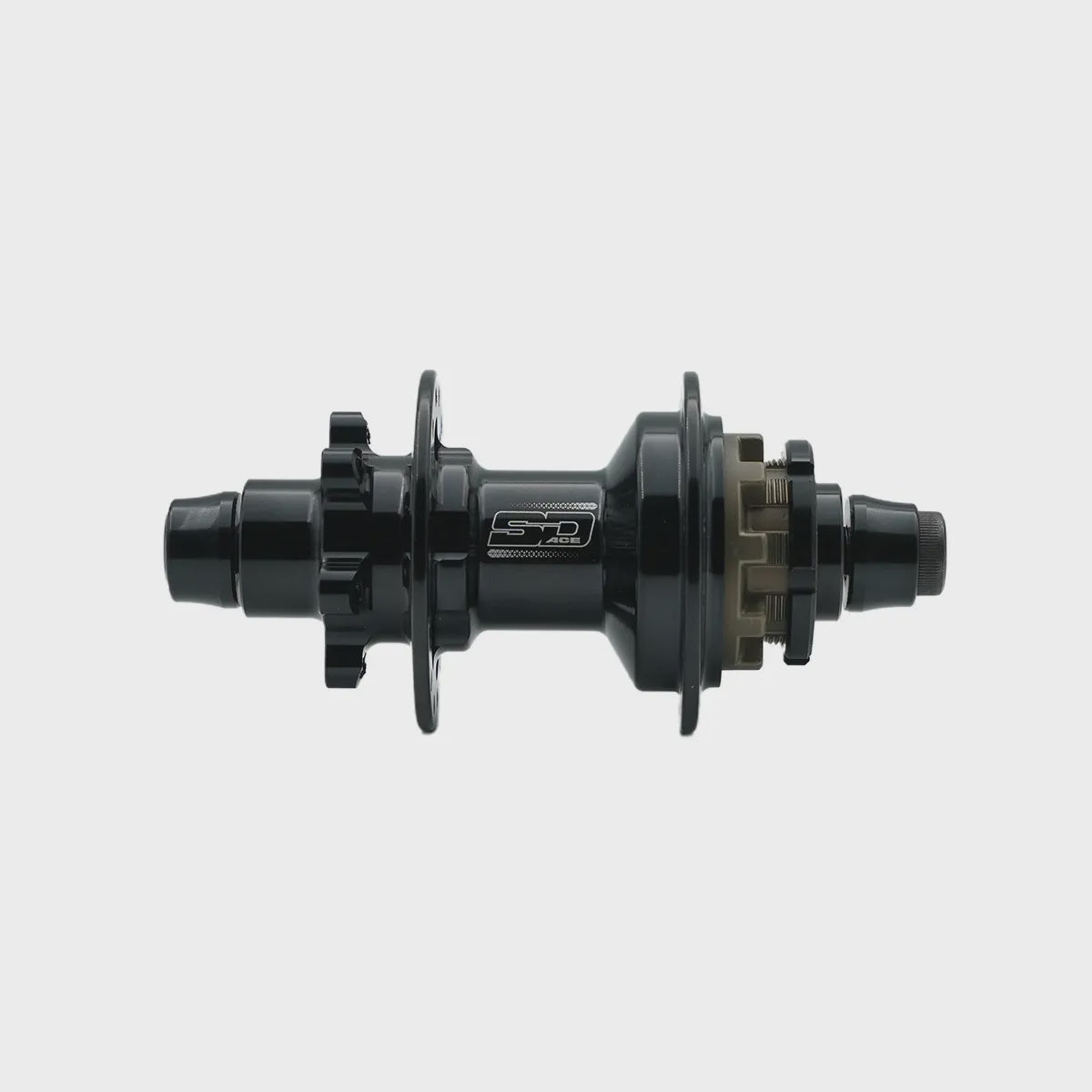

SD ACE V2 Rear Cassette Disc Hub 10mm/28 Hole

Experience unmatched performance and reliability with the SD Ace V2 Rear Cassette Disc Hub—engineered for riders who demand strength, precision, and smooth power transfer on every ride. Built from high-grade materials and refined through rigorous testing, the Ace V2 delivers a perfect balance of durability and speed.

Aluminium freehub body

Sealed bearings

6 Pawls, 180 Clicks

10mm axle diameter

10mm width

Disc rotor offset: 115mm

• 6mm hex key diameter
• Weight: 326gr (without bolts and caps, 62gr)
• Including 2 spacers (2mm en 5mm)
• Bearings axle: 6902RS
• Bearings body:  6902RS + 15-26-7 RS
• Distance flange to disc: 15,2mm

A= Total length: 110mm
B= Distance flange to outside non-drive side: 32mm
C= Distance flange to outside drive side: 26mm
D= Flange diameter non-drive side: 58mm
E= Flange diameter drive side: 58mm
